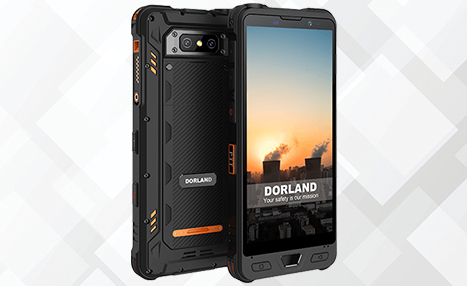

DORLAND Industrial Intrinsically Safe 5G+DMR/satellite Smartphone Xtalki06

Beijing DORLAND System Control Technology Co., Ltd. recently industrial intrinsically safe 5G smartphone Xtalki06_ 5G, using advanced technology, intrinsically safe circuit design, domineering appearance and solid body. This mobile phone adopts a 6-inch capacitive touch screen and is equipped with a rear 48 million pixel camera and a front 16 million pixel camera. Its waterproof and dustproof performance meets the international IP68 standard,This mobile phone also has DMR digital analog intercom function, and supports the frequency band of 400-470MHz.

In addition, this intercom mobile phone is equipped with NFC, Bluetooth and other functions as standard to meet the reading and writing needs of various scenes. We also have Beidou GPS positioning and other functions suitable for outdoor construction and pipeline inspection, It can cooperate with OA office system, patrol positioning system, data acquisition system and other applications.

It is especially suitable for the harsh environment of dangerous explosion, such as petroleum, chemical industry, pharmacy, military industry, oil depot, tank farm and other dangerous places with combustible and explosive gases, so as to facilitate the timely communication between users and production and dispatching.

Ex-Marking：

Ex ib IIC T4 Gb / Ex ibD 21 T130°C
Protection grade：

IP68
Is it all-access：

It’s 5G
Product category：

Satellite Hand Terminal
Other standard accessories：

Charging heads, cables, specs
Network support：

DMR,EVDO,WCDMA,TD-SCDMA,FDD-LTE,TD-LTE,CDMA1X,GSM,5G NR，WIFI
GSM:B2 B3 B5 B8,BC0. WCDMA B1 B2 B5 B8. TDSWCDMA:B34 B39.
EVDO,FDD：1/2/3/4/5/7/8/12/17/18/19/20/26/28. TDD B34 B38 B39 B40 B41 TD-LTE: B38C/B39C/B40C/B41C/B39A+B41A/B3A+B41A
LTE FDD: B1C/B2C/B3C/B7C/B1A+B3A/B1A+B3C 5G NR:n1/n3/n28/n41/n77/n78/n79
EN-DC:B1-n78；B3-n78；B5-n78；B8-n78；B1A+B3A-n78；B3C-n78；B3C+B1A-n78；B3-n41；B39-n41；B3-n79；B39-n79
Ground Card Specification：

4FF
AP Model：

MT6873
AP Audit：

Octonucleus
AP Dominant Frequency：

2.0G
Intelligent operating system：

Android 11.0
Appearance Type：

Straight Plate
Antenna pattern：

External placement
Antenna size：

Diameter Φ13.4*107.6mm (including adaptor)
Product size：

175.5 x 79.4 x 20.4
Product weight：

390g
USB interface：

TYPE-C
USB transfer efficiency：

USB 2.0HS
Headphone Jack：

3.5 mm headphones
Home screen size：

Six inches
Home touch screen type：

Capacitive touch screen
Rear Camera, pixels：

48 megapixels
Front facing camera, pixels：

16 megapixels
RAM（Unit Mbyte）：

6G
ROM（Unit Mbyte）：

128G
Maximum support for extended memory（Unit Mbyte）：

1 T
Whether traditional Chinese is supported：

Yes
Sensors：

Light Sensor, magnetic sensor, gyroscope, gravity sensor, step sensor, distance sensor, barometer
Navigation support：

The Big Dipper／GPS／GLONASS／Galileo, four in one, fast GPS
USB Mode (OTG)：

Yes
Bluetooth wireless communication：

Yes
WIFI/WAPI：

WIFI
Battery type：

Polymer battery
Battery capacity：

8000mAh, charging current ≥9v/2a.
Satellite Standby Time：

Satellite Network Standby Time ≥170 hours; Satellite Communication Time ≥10 hours
Public Network standby time：

Standby Time ≥800 hours; talk time ≥52 hours
Online air upgrade：

Yes
Satellite Voice：

1.2/2.4/4.0kbps
Satellite data：

1.2-9.6kbps
Flashlights：

Emergency flashlights
Noise reduction：

With intelligent noise reduction function

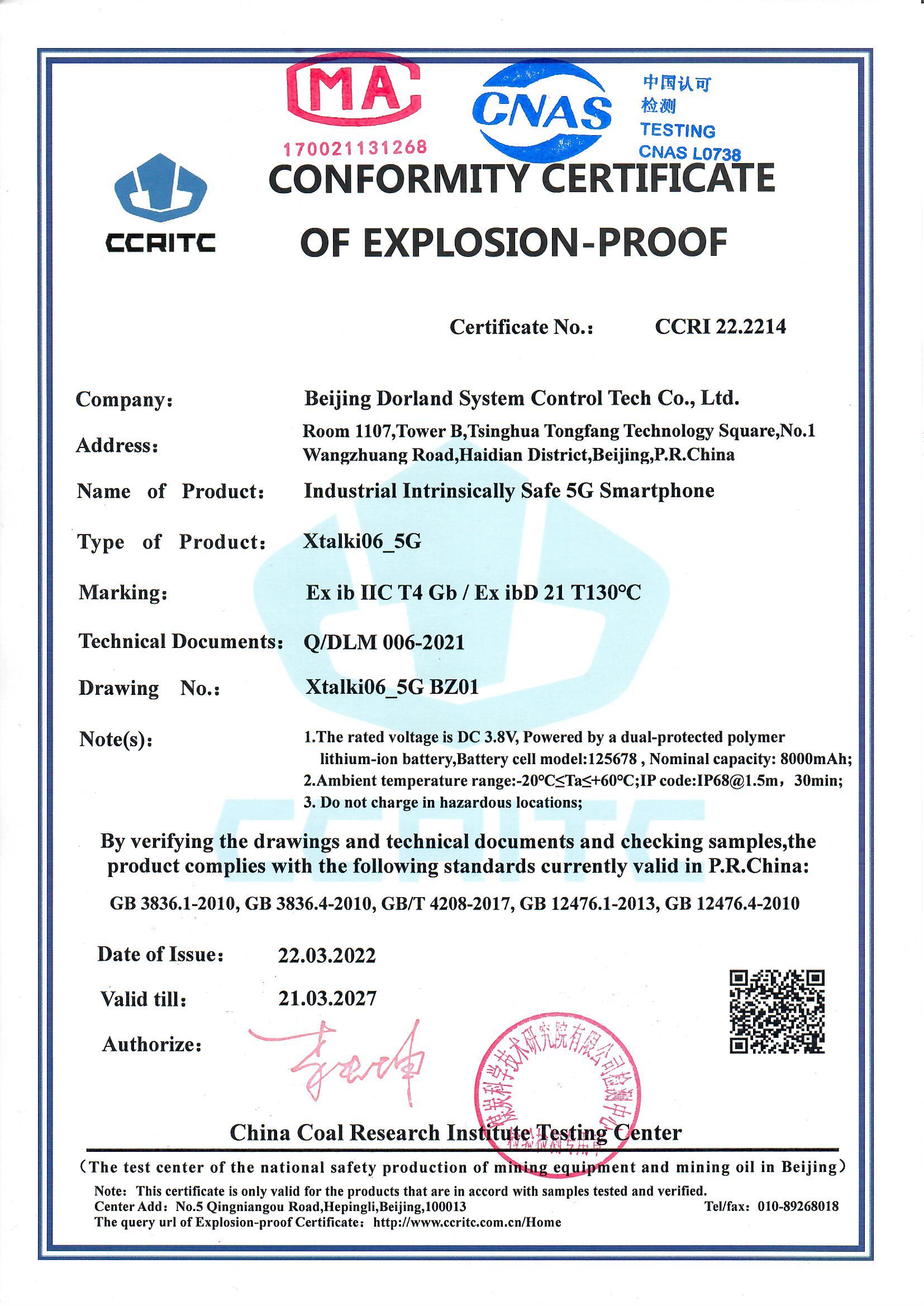

Xtalki06_5G explosion proof certificate

Download

Xtalki06_5G inspection report

Check the details Download

Xtalki06_ 5G 1.8m Drop Test Report

Check the details Download

Xtalki06_ 5G High and Low Temperature Test Report

Check the details Download
