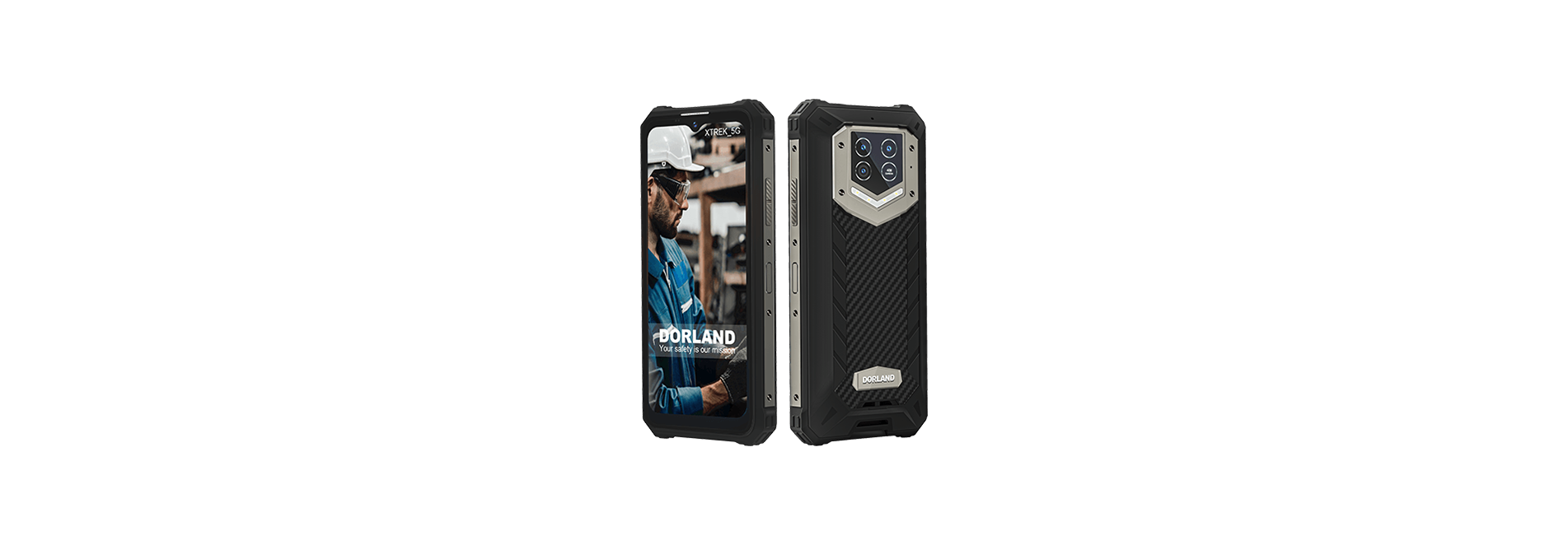

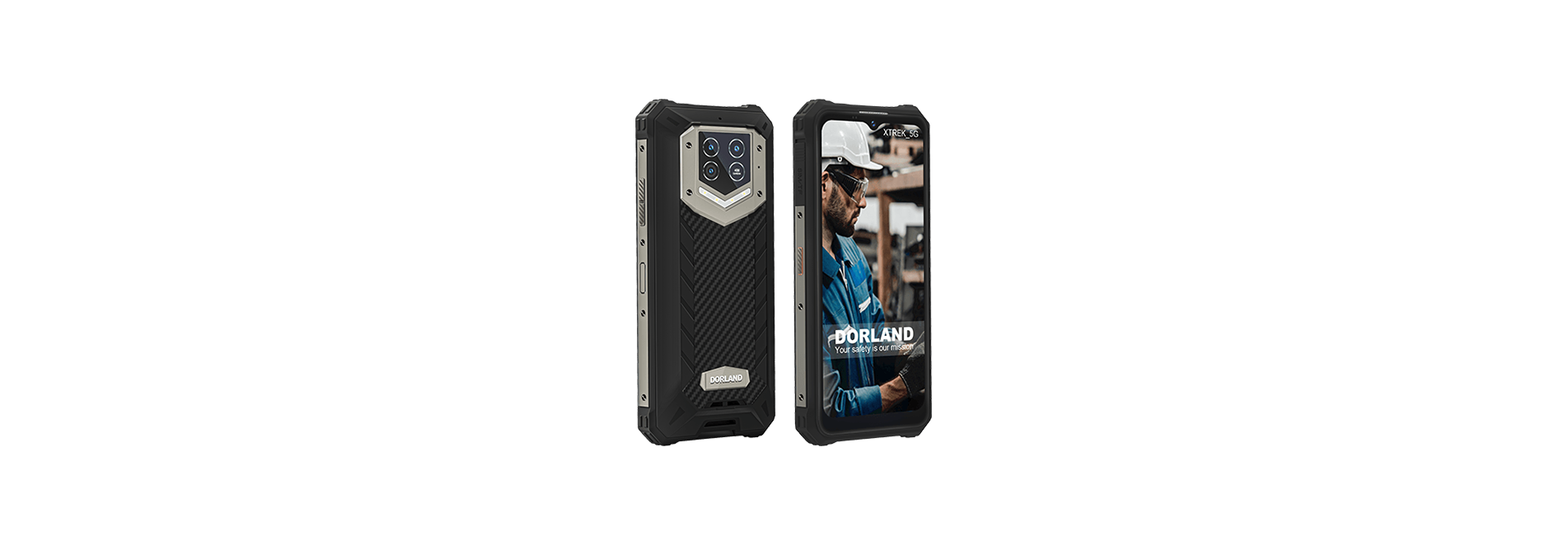

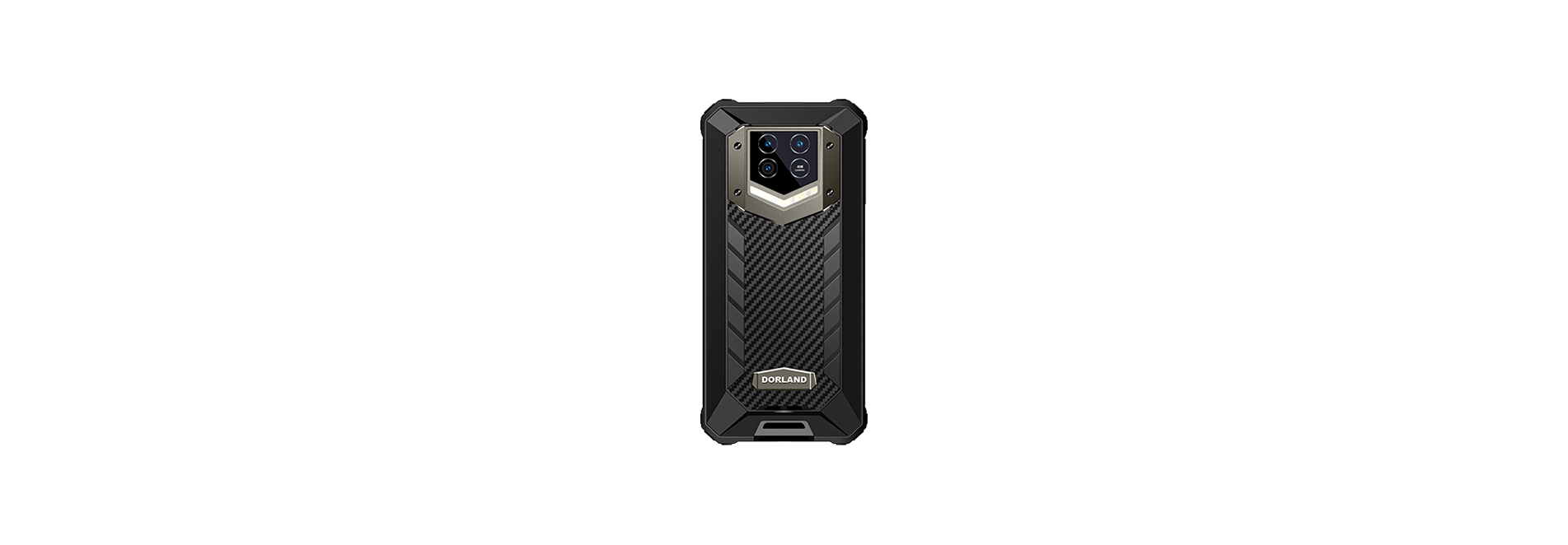

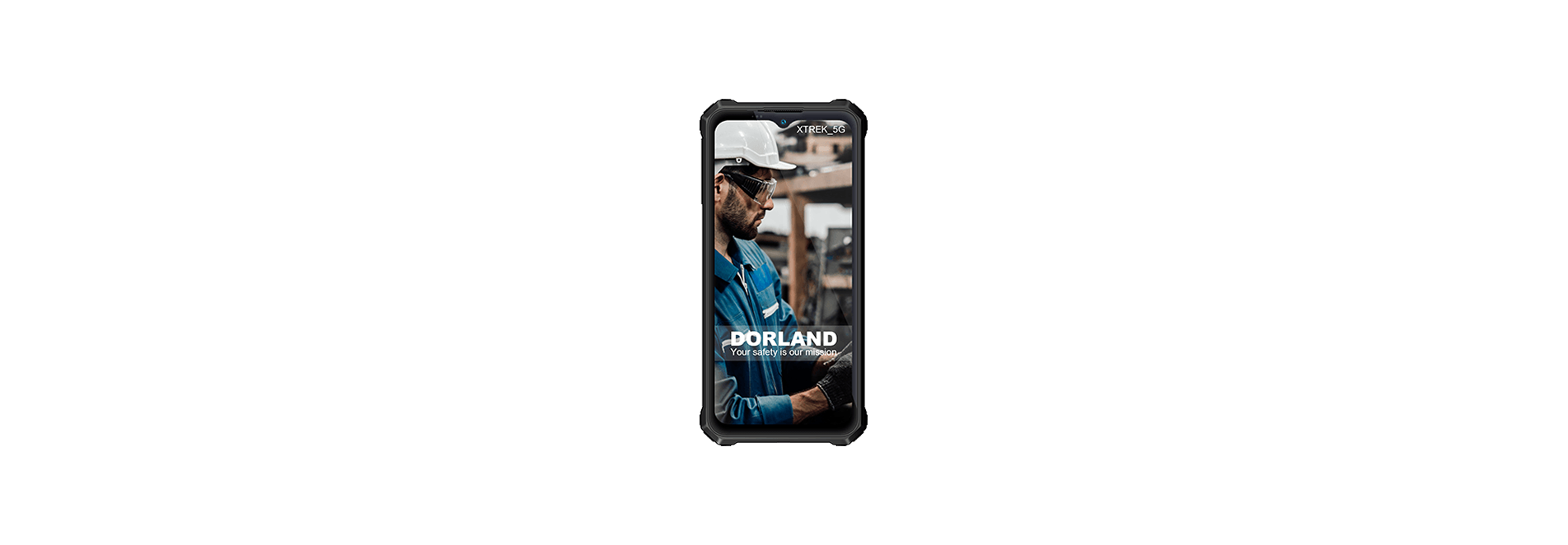

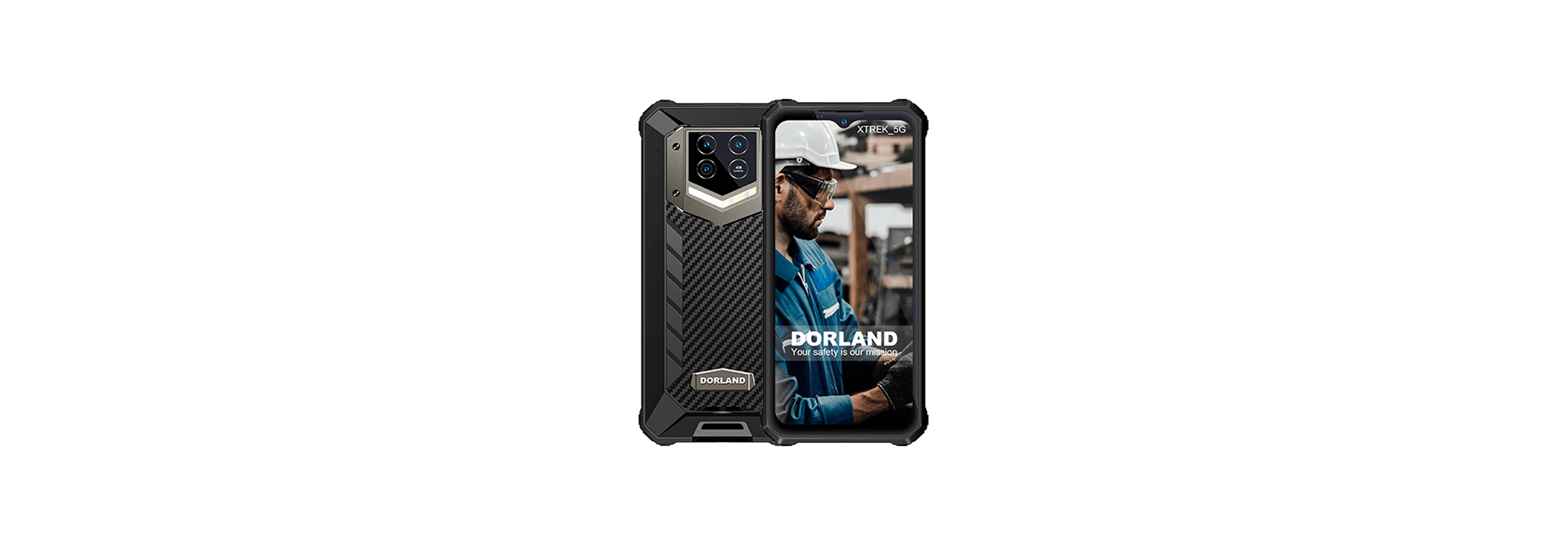

Dorland Industrial Intrinsically Safe 5G Smartphone XTREK

Beijing DORLAND System Control Technology Co., Ltd. recently industrial intrinsically safe 5G smartphone XTREK_ 5G, using 5g advanced technology, intrinsically safe circuit design, domineering appearance and solid body. This mobile phone adopts a 6.517 "water drop screen, with a rear three camera 48 + 2 + 0.3mp, and supports NFC. Its waterproof and dustproof performance meets the international IP68 standard.

In addition, it supports fingerprint one click unlocking, Bluetooth, WiFi and other functions to meet the reading and writing needs of various scenes. We also configure GPS positioning and other functions suitable for outdoor construction and pipeline inspection in the mobile phone, which can cooperate with OA office system, inspection and positioning system, data acquisition system and other applications.

It is especially suitable for the harsh environment of dangerous explosion, such as petroleum, chemical industry, pharmacy, military industry, oil depot, tank farm and other dangerous places with combustible and explosive gases, so as to facilitate the timely communication between users and production and dispatching.

Certificate No.

CCRI 22.2215
Ex-Marking：

Ex ib IIC T4 Gb / Ex ibD 21 T130°C
Protection grade：

IP68
colour：

black
Dimension (mm) ：

178.2*86.2*23.8mm
weight：

485g
operating system：

Android R (11.0)
CPU：

MT6833 8 core 2*A76 2.2GHz 6*A55 2.0Ghz
capacity：

16380 mAh
Material Science：

polymer
Voltage：

3.87V
Standby time：

1300H
Call time：

80H
Memory：

8GB+128GB uMCP(UFS2.1+LPDDR4X)
T-card：

Y (maximum support 2T)
Pre-camera：

800 W
Postcamera：

4800 W+200W Macro+30W Secondary Camera
Flash lamp：

Supports True Flash
Dimensions, Technology：

6.517 inch IPS
Resolving power：

720(RGB)×1600
Pixel density：

270
brightness：

350nit typictal，400nit min
effective area：

67.93×150.96
Aspect Ratio：

18:09
Contrast：

1000（type）
Double Card Insertion Mode：

Nano card+T card@dual nano card
Network System：

GSM+CDMA+WCDMA+FDD+TDD+NR
Frequency band：

GSM:B2/B3/B5/B8
CDMA:BC0/BC1/BC10(with RXD)
WCDMA:B1/B2/B4/B5/B8/B6/B19(with RXD)
FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B18/B19/B20/B25/B26/B28A/B28B/B66/
TDD:B34/B38/B39/B40/B41
NR：n1/3/5/8/20/28/38/41/77/78/79
fingerprint identification：

Supports side fingerprints
GPS：

IEEE802.11 a/b/g/n/ac 2.4/5G
Wi-Fi：

IEEE802.11 a/b/g/n/ac 2.4/5G
Bluetooth：

5.0'
FM：

Yes
To configure：

Gravity Sensing, Distance Sensing, Light Sensing, Compass, Geomagnetism, Gyroscope
NFC：

Yes
Battery Meter：

Yes
Fast charging：

Support PE+2A
Sound amplifier：

AW88194A Smart PA
Panel Technology：

LTPS
IC：

ILI9882N
Induction technology：

incell
Material Science：

3rd generation conning glass
Screen Fitting Method：

Full Stick
Power Key：

Yes
Volume key：

Yes
SOS key：

Yes
horn：

2513 BOX
Vibrating motor：

H4444KTB Cylindrical Motor
Receiver：

0809 shrapnel
Microphone：

Silicon wheat sensitive core micro H8
Indicator light：

Yes
Charging outlet：

Type-C
Shell structure：

Non-removable
Shell material：

Plastic cement
colour：

black
Intelligent gesture：

Yes
mid-air gesture：

Yes
Support language：

Simplified Chinese, traditional Chinese, English, and other languages

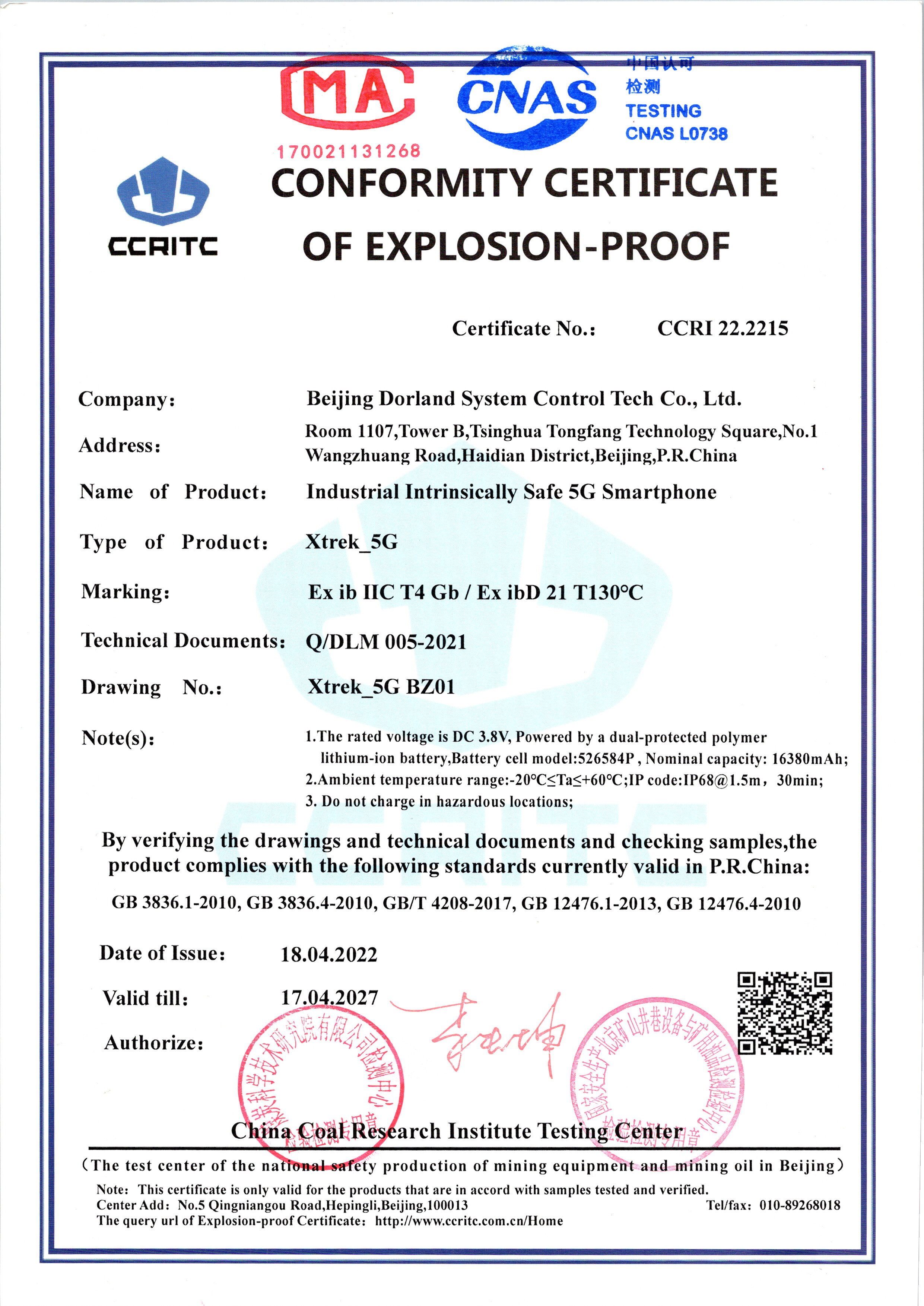

Xtrek_5G Certificate

Download

Xtrek_5G Inspection Report

Check the details Download
