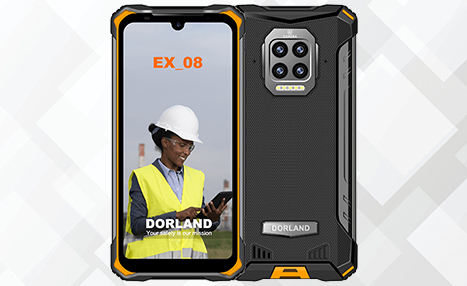

Dorland Industrial Intrinsically Safe Smartphone EX

Developed by Beijing Dorland System Control Technology Co. Ltd., the industrial Intrinsically Safe Smartphone Ex_08 adopts advanced technology with intrinsically safe circuit, 6.088” 19.5:9 touch screen and 8M (Front Camera) &16M+8M+2M+30W (Rear Camera). Its waterproof and dustproof performance can meet the international IP68 standards. Side fingerprint unlock function, NFC function meets read-write needs on any occasion.

In addition, built-in GPS, Glonass, BEIDOU and other functions are suitable for outdoor construction and pipeline inspection. Ex_08 can also cooperate with OA office system, checking positioning system and data acquisition system etc. This model is especially suitably used in dangerous environment such as petroleum, chemical, pharmaceutical, oil depot, tank farm as well as the dangerous sites with combustible and explosive gas.

It is convenient for users’ timely production dispatching and communication.

Ex-Marking：

Ex ib IIC T4 Gb / Ex ibD 21 T130℃
Certification No.：

CCRI 21.2840
Protection grade：

IP68
Machine Weight：

322.6g(including battery)
(mm) size：

164.6*81.2*16.8mm
Operating system：

Android 10.0
CPU：

MTK6771 Helio P60、8 nucleus、4xCortex-A53 2.0GHz 4xCortex-A73 2.0GHz
Frequency band：

GSM：B2/3/5/8 WCDMA：B1/2/4/5/8 FDD(B1/2/3/4/5/7/8/12/13/17/19/20/25/26/28A/28B/66)
EDGE/GPRS：

Yes
Running memory：

8GB /DDR4
Storage memory：

128GB /DDR4
Type of SIM card：

SUPPORT Nano SIM+Nano SIM/Nano SIM+TF card
Memory Card type：

T-flash card
Extended memory：

256GB
Front camera：

8MP Pixel size：3296*2512
Rear Camera：

16MP+8MP+2MP+30W Pixel size：4672*3504 FLASH：support
Macro sensor：

BF2253L
Macro optical dimension：

1/5inch
Macro Pixel size：

1600*1200
Macro aperture：

F/2.2
Macro Angle：

76°
Macro function：

Photographs (Picture)
Wide-angle inductor：

S5K4H5
Wide Angle Optical dimension：

1/4inch
Wide-angle Pixel size：

3264*2448
Wide-angle aperture：

F/2.2
Wide Angle：

120°
Wide-angle software function：

Photographs (Picture)
Size, technique：

6.088 IN-CELL Drip screen
Screen color：

16.7M
Type ：

LCD
Resolution：

720*1560
Pixel density：

282ppi
Aspect ratio：

19.5:9
Screen ratio：

86.80%
Luminance：

420cd/m2 (MIN)
Contrast ratio：

1500 (TYP)
Navigation：

Support GPS + GLONASS + Beidou
WIFI：

Yes 2.4G（802.11a/b/g/n)/5G
Bluetooth：

Support BT5 0
FM：

Plug in the earphone adapter and play out
OTG：

Yes
NFC：

Support Google pay
sensor：

Gravity sensing, distance sensing, light sensing, compass, geomagnetism, gyroscope
Unlocking mode：

Side fingerprint identification
Fast charging：

Support maximum charging 12V2A
Sound amplifier：

Smart PA，AW8898
Panel technology：

Double layer multipoint
IC：

9911CAC-01
Induction technology：

Capacitive touch screen
Material Science：

Panda tempered glass
Screen fitting method：

Full paste
Entity key：

Power key, volume key, custom key
Virtual key：

Home key, menu key, return key
Drive Unit：

1225 box single box horn rated 1.2W, maximum 1.8W
Vibration motor model：

0827 flat motor
receiver：

1008 shrapnel type
Microphones：

Silicon wheat
Indicator light：

Yes
Earphone port：

Yes
Charging port：

Type-c
Capacity：

Unloadable，8500mAh
Charging frequency：

400 times
Materials：

Lithium cobaltite
Voltage：

4.4V
Coefficient of battery capacity：

1.5
Drop Coefficient：

MAX 0.5C
Cell density ratio：

663Wh/L
Shell structure：

Two-color injection molding
Shell material：

PC + 10% fiber + TUP90 degrees
Color：

Orange, red, black
System Navigation：

Gesture Navigation, three-button navigation
SMART gestures：

Support supports gestures based on reality, which is turned off by default
SOMATOSENSORY transmission：

Support Turns off the mute, intelligent answer, and wakes up when the device is picked up
Systemic body sensation：

Support three-finger screen capture, three-finger into the camera, three-finger slide start split screen, anti-touch mode, this feature is disabled by default
Support language：

Simplified Chinese, traditional Chinese, English, etc.

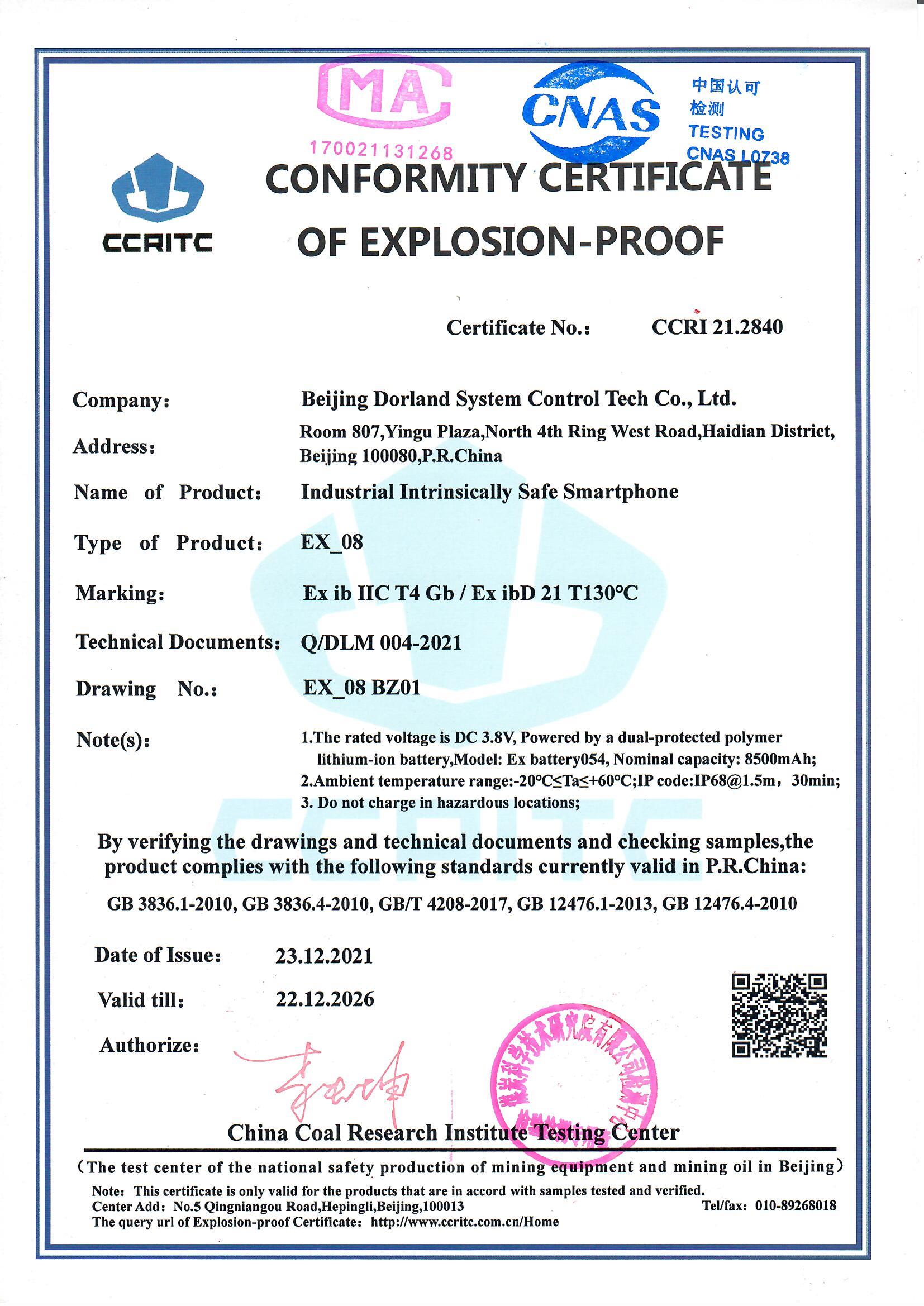

Ex_08 Explosion proof Certificate EN

Download

Ex_08 Inspection Report

Check the details Download
